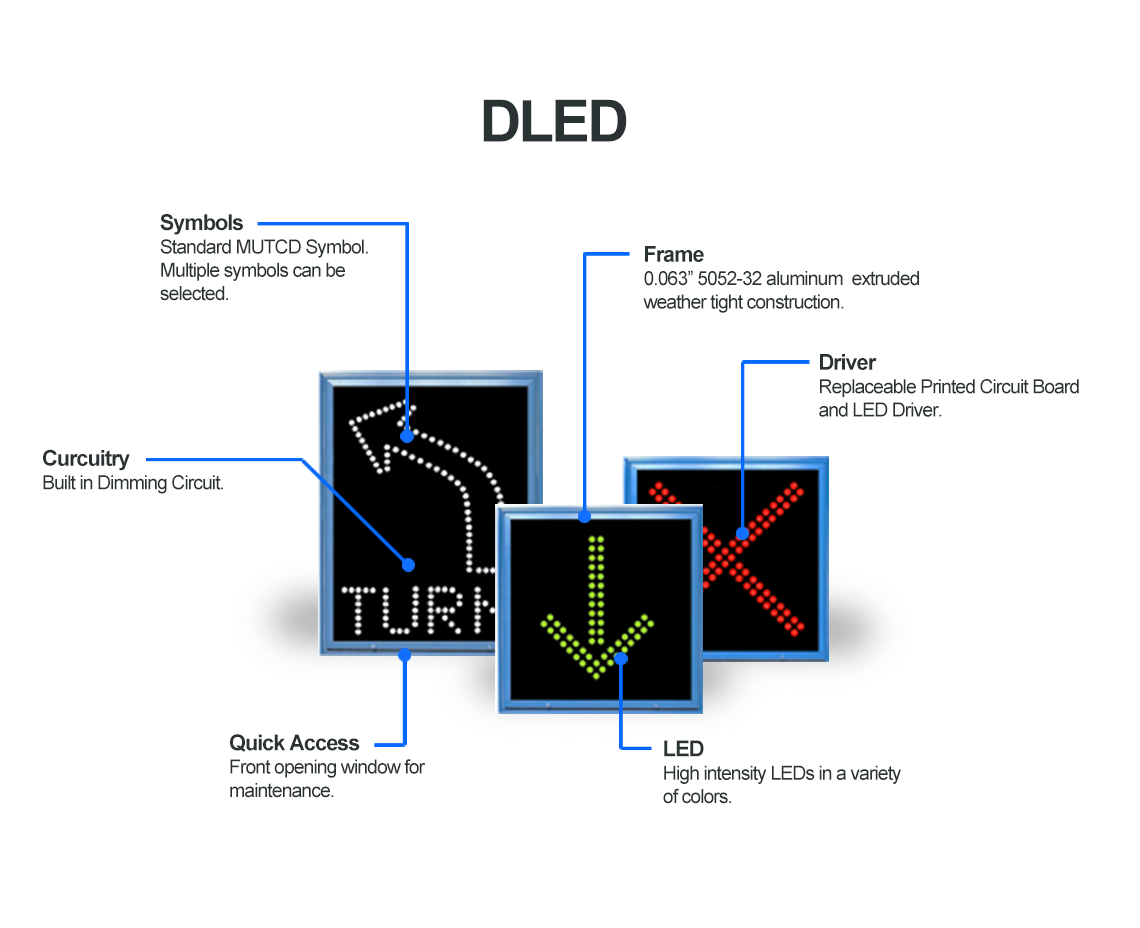

DLED Directional Blank Out Sign
The DLED series is designed for marking the flow of traffic.
This luminaire is also perfect for controlling merging traffic and for directing the flow of traffic entering and exiting toll booths, sports arenas, special event centers, and areas where traffic control is important.
Features
• Internally Illuminated Directional Luminaire
• Energy Saving LED Signage
• Conforms to MUTCD Standards
• High Visibility
• Low Maintenance with Easy Tooless Accessibility
| Housing |
|---|
| The main body and door frame is constructed of .063 5052-H32 aluminum. Corners are seam welded for water tightness. The enclosure design conforms to a NEMA 3R type weather proof housing. Standard finish is a black texture powder coat. |
| Mounting |
|---|
| Standard MUTCD regulatory, warning and LUS symbols and messages. Forming the symbols or text are high brightness 5mm LEDs. Standard symbols and text are double stroke (outline), Triple stroke (filled) is offered on a limited number of signs. Signs can have mulitple message changed by means of internal relays. |
| Electrical |
|---|
| Electrical: Dependent on size and number of LEDs.
Voltage 120VAC @ 50/60Hz standard Max Amps: 5 Max Watts: 75 |
| Lens |
|---|
| It is a .118 clear acrylic tinted 2074 gray, masking the message when not activated. |
| Product ID model | Voltage | Size | Finis and color | Mounting |
|---|---|---|---|---|
| DLED | 120 (std.) |
16x16 18x18 24x24 30x30 30x36 36x36 48x48 |
NA- Natural aluminum CC- Custom color (please specify) |
FMM- Freeswing mastarm mounting DMM- Direct mastarm mounting SPW- Spanwire mounting Configer 1-1/2” HUB mounting H1T- single hub top H1B- single hub bottom H2T- single hup top H2B- single hub bottom HC- Custom |
