Curve™ - Arrow Board
The new National Signal Aro-Lite Curve™ traffic controller represents the latest blend in environment and technology.
With our innovative curve design, the operator has greater clearance to maneuver around the chassis.
This unique curve design provides greater lateral strength to the uprights, decreases the amount of welding which means less energy required for manufacturing, and increases the foot print area.
That means less chance for blow overs in high wind areas.
Features:
• Environmentally friendly sealed battery prevent spills and leaks
• New control with touch sensitive keys and LED display uses 50% less energy which means longer run times between charges
• Newly designed replaceable fenders means less repair time
• Curb side winch and battery box means greater safety for the user
• High mounted tail lights provide motorists with a better view when stopping
| Options |
|---|
| Combo hitch 2” ball & 3” pintle ring, 8” & 18” adj. |
| Battery controller |
| Battery charger, 15A or 30A fanned cooled |
| Wheel locks |
| 14” wheels |
| Cone rack |
| Trailer Construction | |
|---|---|
| Deck area | 43” deep x 50” wide |
| Drawbar | 3” x 3” x 3/8” wall steel tube, removable |
| Fenders | formed steel bolt-on |
| Frame | (4) post design 2.125” x 1.78” x 1/8” steel tubing formed to an arc MIG welded to frame |
| Length w/ drawbar | 114” |
| Length w/o drawbar | 67” |
| Height sign up | 139” |
| Height sign down | 89” |
| Hitch | 2” ball class II 3500 lb capacity, removable |
| Jacks | (4) slide type plated, (1) swing type |
| Tire size | ST205/75-D15 load C |
| Weight | 1000 lbs |
| Winch | 1000 lb. with double disc brake system, 1/4” diameter galvanized steel cable mounted on curb side |
| Control | |
|---|---|
| Circuit Protection | Automotive style blade fuses |
| Dimming | Manual or automatic |
| Display | LED, shows operating mode |
| Meters | Voltage built-in with low voltage warning and shut-down |

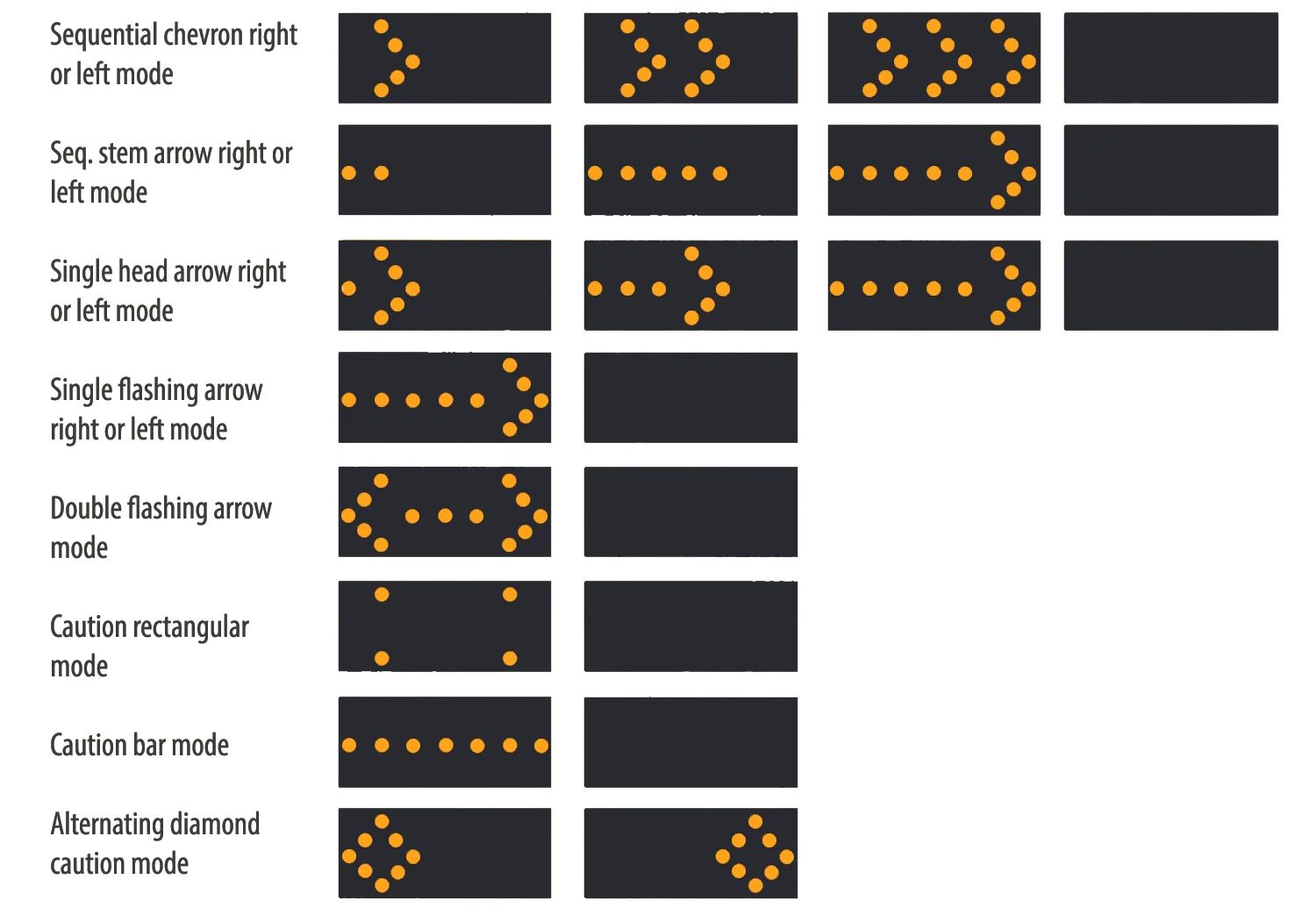

| Functions 15 lamp | 7 |
| Functions 25 lamp | 12 |
| Display | |
|---|---|
| Front lamps | 15 or 46 PAR |
| Height | 48" |
| Lamp covers | 360 degrees |
| Lamp type | LED, 590nm reverse polarity protected |
| Panel Construction | aluminum |
| Photo sensor | shielded extraneous light |
| Rear lamps | 3 |
| Batteries and Solar Collectors | |
|---|---|
| Batteries | (1) 12v sealed AGM, For other options: Call factory |
| Battery Enclosure | Lockable, ventilated, acid resistant |
| Solar collector | Crystalline silicon |
| Solar collector frame | Formed steel, powder coated black, self erecting, universal |
